Overview
The openUC2 Electronics Add-On is a modular and open-source toolkit designed to introduce you to the automation of traditional microscopes. With cutting-edge components like an ESP32 microcontroller, stepper motor drivers, and an advanced LED array, this kit provides everything you need to start exploring automated imaging workflows.
Experiment, innovate, and build workflows tailored to your research needs.
- ESP32 Microcontroller: Runs the UC2-eSP firmware for seamless integration with Python, JavaScript, and other programming interfaces.
- Precision Automation: Achieve sub-micron accuracy with the Z-stage, enabling advanced tasks like autofocus by capturing contrast curves.
- Remote Control: Use the PS4 controller for intuitive, wireless operation of the microscope.
- LED Array: Test and experiment with digital contrast techniques, such as differential phase contrast (DPC).
- Software Integration: Quickly integrate the electronics into the Python-based ImSwitch software for advanced control and imaging.
Digital Control

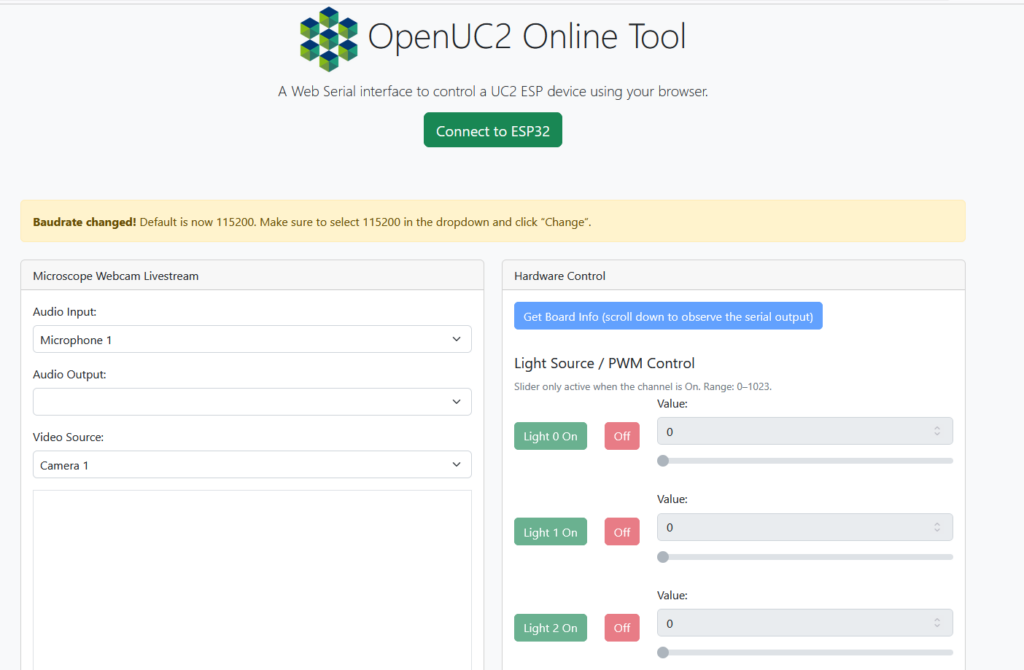

Operate your microscope using a physical controller or a browser-based WebSerial interface, allowing seamless control and live feedback directly from your device. The firmware for the esp32c3 can be found here https://youseetoo.github.io/
What's inside the electronics
Add-On
Cubes & Optics
- Electronic Z-Stage (NEMA 11 motor, RMS Thread, 25mm travel range, <1µm step size)
- LED Array (for advanced illumination techniques)
- 1 × RMS Objective Lens (10×, NA = 0.1)

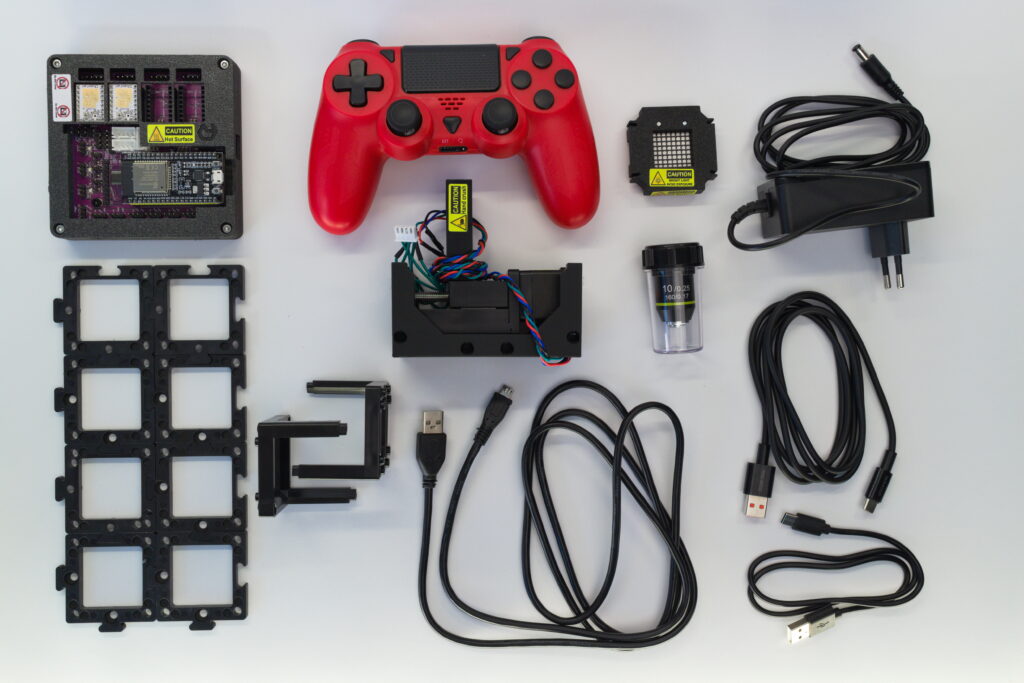

Accessories
- 8 × Puzzle Base-Plates
- UC2 Electronics (ESP32-based, 2×2 cube, slots for TMC2209 stepper drivers, ports for LEDs, lasers, and other peripherals, compatible with UC2-eSP firmware)
- 2x USB-C Cable
- PS4-Compatible Controller (wireless control)
- 12V Power Supply
Tutorials & documentation
All tutorials are open-source at openuc2.github.io/docs.
Electronic
Curious?
Contact us for
a custom quotation or visit our shop.
Contact us for a custom quotation.
Electronics extends Core by a digital control unit together with a software suite, a controllable linear-stage, an array of individually controllable LEDs and an RGB-camera. It empowers you to build your first, automated imaging workflow and lays the foundation for professional data-processing. Enhance your smartphone microscope to a proper, remote-controllable microscope.
