Introduction & Challenge

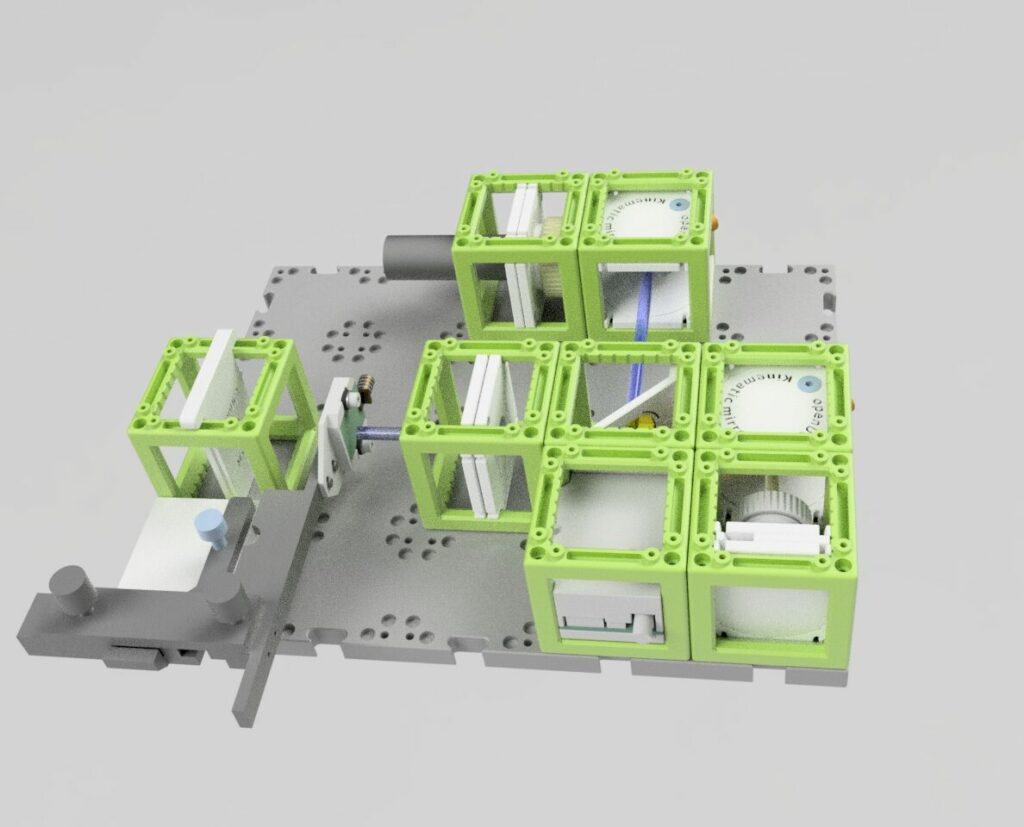

Add true quantum-optics experiments to the Discovery Line. qBOX uses the same UC2 cubes as the Core kit and supplements them with a green laser, microwave driver and NV-diamond stage, taking learners from ray optics to room-temperature quantum sensing in minutes. Every module that fits inside our injection molded cubes (now v4!) is 3D-printable, replaceable and the complete setup stays around €1 000.
Same platform, next level – extend any Core setup without replacing parts.
Budget-friendly quantum lab – first fully open-source ODMR kit for around €1 000.
Interdisciplinary – physics, biology and data science in one toolbox.
Learn how to code: – the firmware on the Seeed Studio ESP32C3 Xiao is fully open-source (get it here https://youseetoo.github.io/)
Scalable & repairable – print new cubes or swap optics as you iterate.
Community-driven – hundreds of educators and makers share upgrades and code. Forum: http://openuc2.discourse.group/
Digital guidance

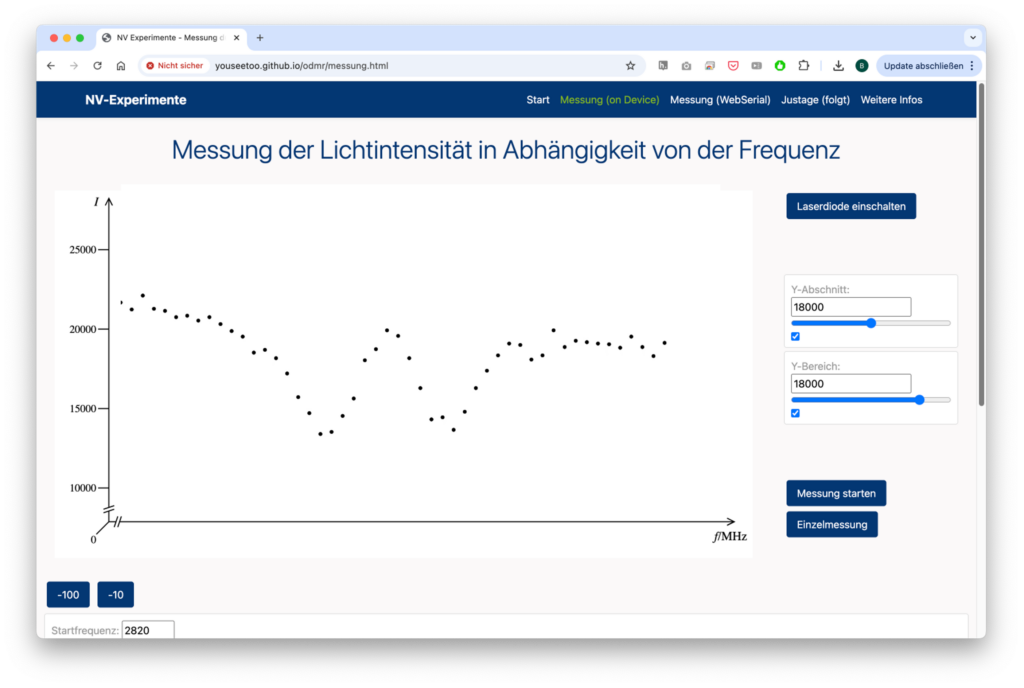

A browser-based wizard walks users through alignment, microwave tuning and live data capture. Fluorescence intensity and ODMR spectra stream directly to Python notebooks or CSV, enabling immediate analysis and challenge-based coursework that blends physics, engineering and data science. The firmware for the esp32c3 can be found here https://youseetoo.github.io/
Key Experiments
| Experiment | What you learn | Typical outcome |
|---|---|---|
|
Experiment Michelson / Mach–Zehnder interferometer |
What you learn Path-length sensitivity, coherence, phase |
Typical outcome Resolve sub-nanometre displacements |
|
Experiment Quantum eraser & polarisation |
What you learn Wave-particle duality, Malus’ law |
Typical outcome Restore / suppress interference by selecting polarisation states |
Key Experiments
Experiment type 1:
Michelson / Mach–Zehnder interferometer
What you learn:
Path-length sensitivity, coherence, phase
Typical outcome:
Resolve sub-nanometre displacements
Experiment type 2:
Quantum eraser & polarisation
What you learn:
Wave-particle duality, Malus’ law
Typical outcome:
Restore / suppress interference by selecting polarisation states
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

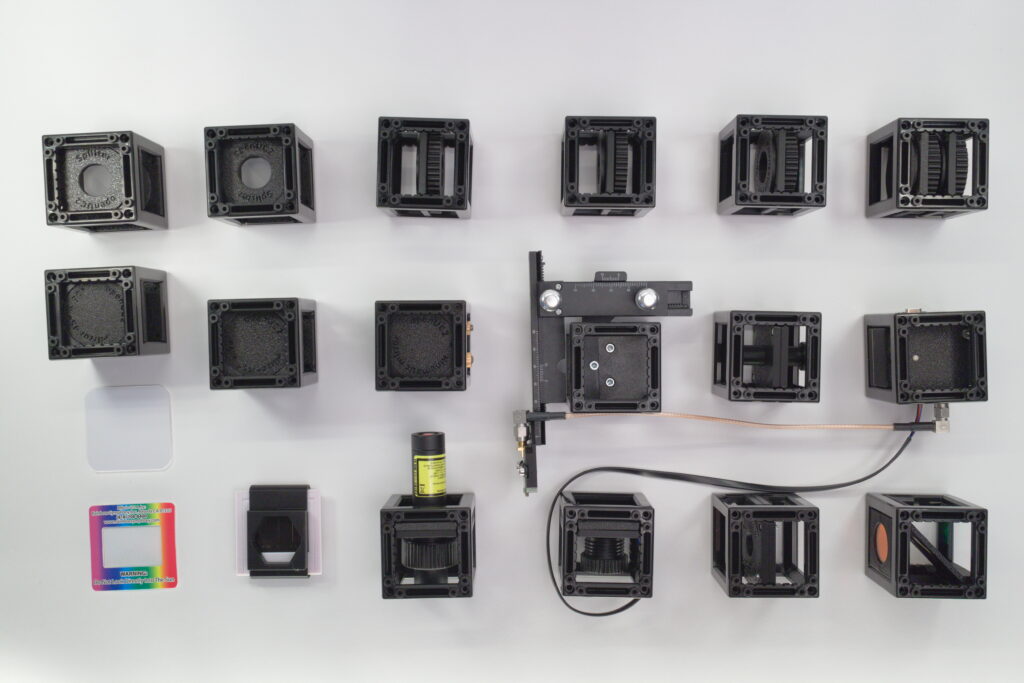

What's inside the qBOX
UC2 base plate & cubes
520 nm laser-diode cube
2 × 0/45° mirrors (kinematic)
2 × 0/45° mirrors (stiff)
2 × Beam-splitter cube with long-pass filter
Plano-convex lens (f = 75 mm)
XY-stage with NV-diamond mount
Microwave driver & loop antenna (incl Seeed Studio Xiao ESP32C3)
Magnet cube
Light-sensor module
USB-C control board with Wi-Fi GUI
Quick-start booklet & full open-source docs
Tutorials & documentation
All tutorials are open-source at openuc2.github.io/docs.
